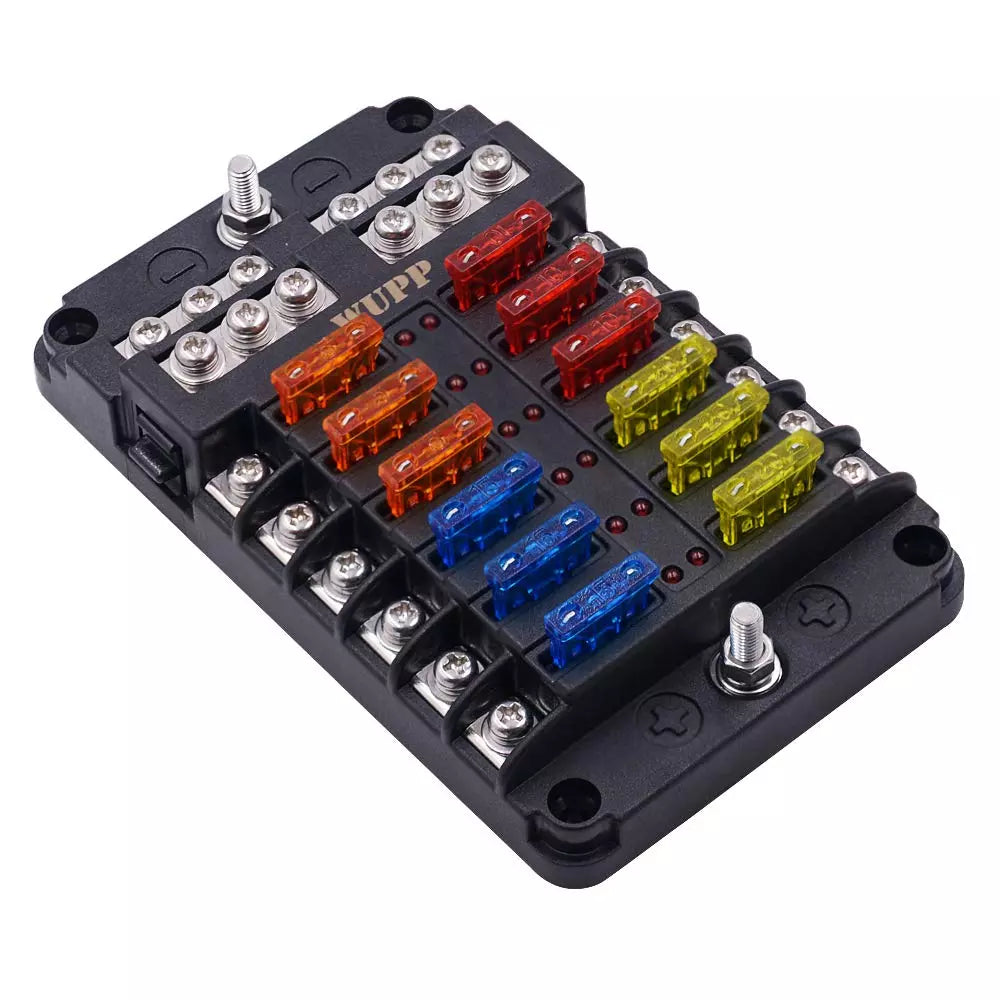

Product Description: All automotive electrical projects need to be properly protected: that means each and every circuit. WUPP fuse block are an effective method of protection to prevent damage to wiring and possible fire in the event of an over-loaded or short circuit.
Key Features
This WUPP space-saving fuse block can provide protection for new installations or when the panel has run out of breakers

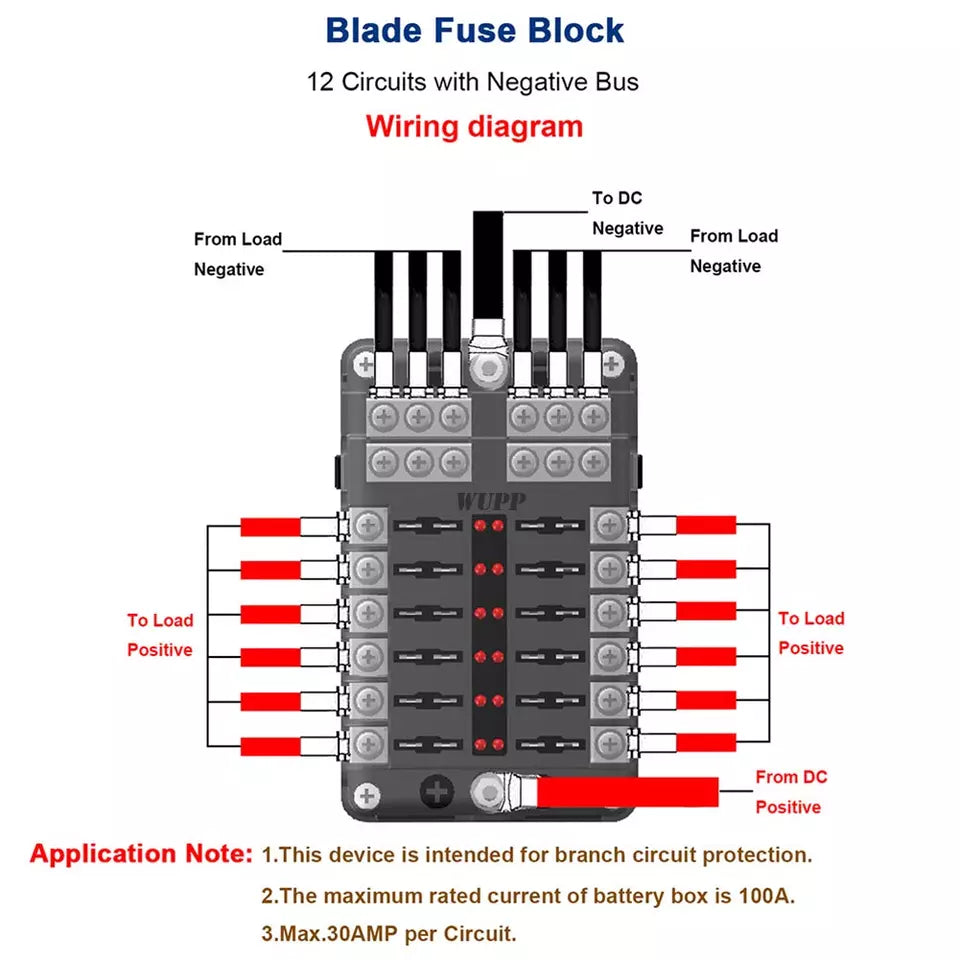

Often used for electronic installations, this fuse block can be fed by one breaker from the distribution panel and supply power 12 additional circuits
Compact size allows it to be installed in tight spaces close to the loads they protect
Available with a ground bus to match the requirements of your application
All buses and fuse clips are tin plated copper for corrosion resistance and optimal electrical conductivity
All ST Blade fuse blocks utilize a speciazed fuse clip that is designed to hold fuses in place in the harshest conditions
WUPP fuse block will be your choice!
Specifications
Input
Voltage: 12V-32V
Maximum
Amperage: 100A per block/ 30A per circuit
Voltage: 32V
Quantity of
Slots: 12
Terminal: M5 threaded stud
Single

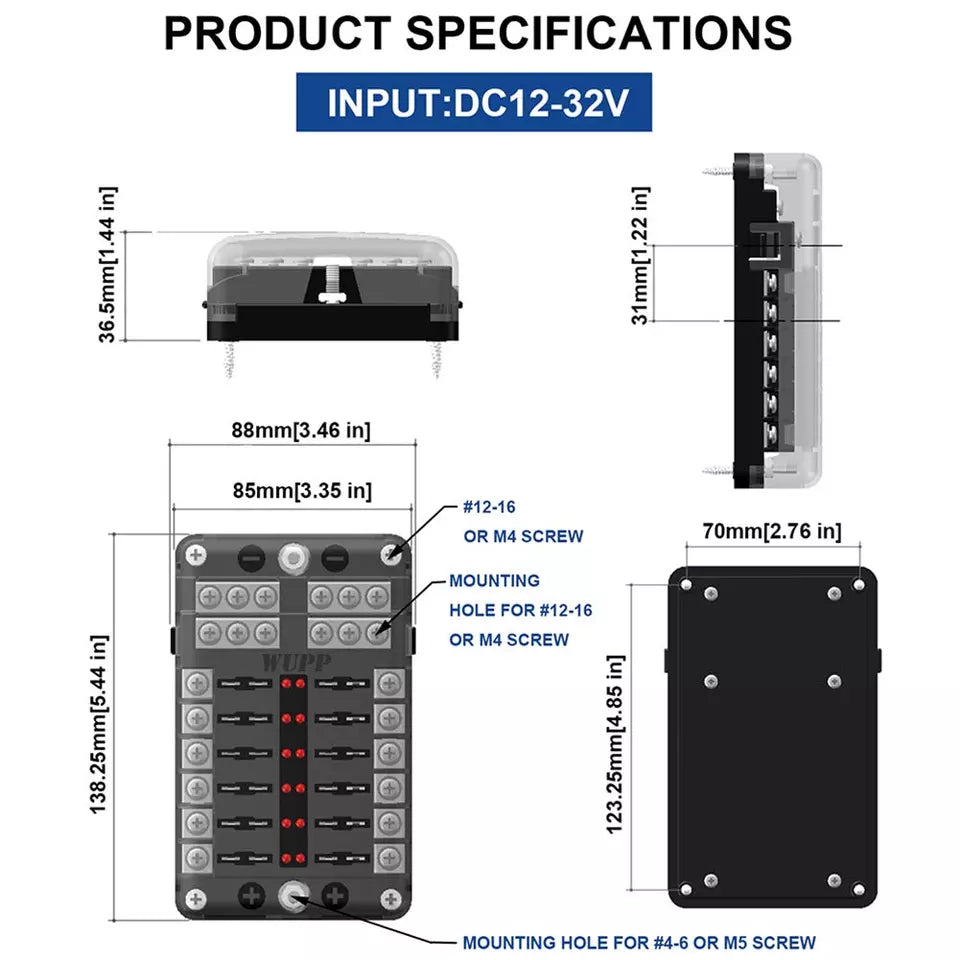

Terminal: M4 threaded stud Product Dimensions 138.25*85*36.5 mm
Approved
ABYC/USCG
Requirements
Type: Standard(ATC or ATO)

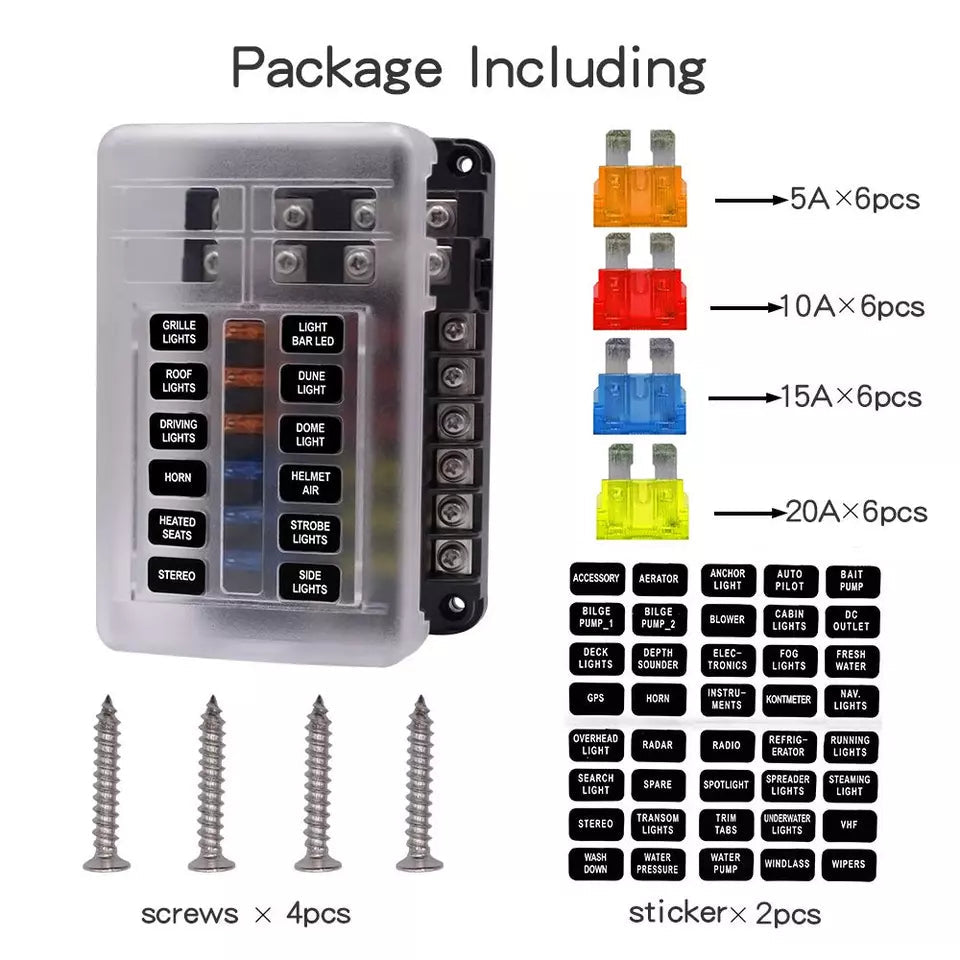

What's in the Box
1 x 12 Circuit Fuse Block w/ Neg Bus 6 x 5A orange fuse pieces 6 x 10A red fuse pieces 6 x 15A blue fuse pieces 6 x 20A yellow fuse pieces 2 x sticker 4 x screws
