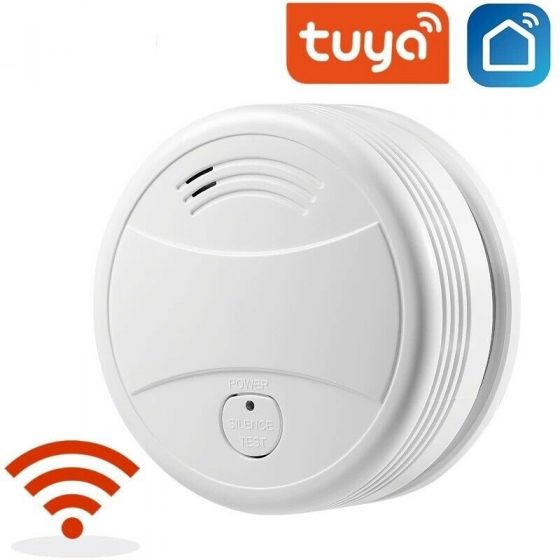

WiFi Smoke Detector Sensor

Description:

• This WiFi strobe smoke detector is the device which can detect smoke occurred at the beginning of a fire disaster and generates live strobe &sound alarm, at the same time, push alarm information to mobile app by WiFi.

Mute & Testing

• Mute: in alarm status, press the ‘TEST’ button to mute the buzzer, only LED indicator flashes.
• Testing: in normal status, long press ‘TEST’ button for 2s to trigger the sound & light alarm, alarm message is pushed to the mobile APP.

WiFi Configuration & Networking

• Install ‘Tuya Smart’ APP on your smartphone the first time you use the detector.

Features:

• Type: Smoke Detector
• Android IOS App: TUYA /Smart Life
• Power supply: DC9V alkaline battery (no include)
• Working temperature: 0? ~ +50?
• Low battery alert: Less than 7.0V±0.2V
• Product size: 10.7R x 4.8H (cm)
• Remote Alarm: Push notification to smartphone
• Local Alarm: sound and led flash
• Application: Detect smoke of fire
• Static current?<10uA
• Alarm current: <100mA
• Working temperature: +50
• Alarm sound?>80dB

Installing Method:

1. Make a hole on the ceiling by using the percussion drill
2. Install the expansion tube on the ceiling
3. Fix the installation board by using the screw
4. Aiming the alarming device with the installing board and connect them, rotating clockwise till heard the "kaca" sound, means installing correctly.

Package Includes:

• 1 X Smart WiFi Smoke Detector
