Description:

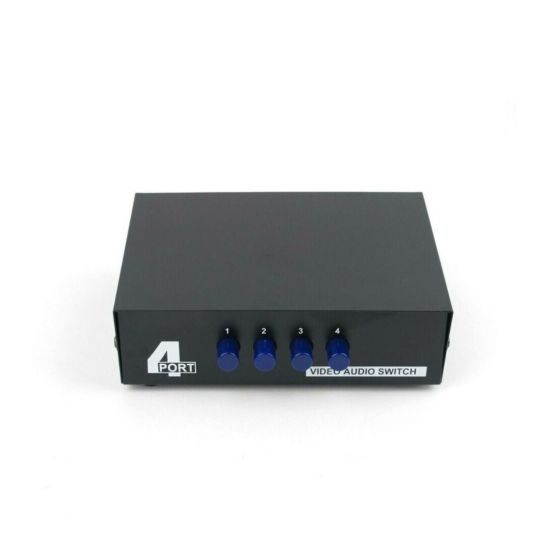

This video audio switch allows you to switch between 4 different input sources on one display using a RCA composite connection (red, white, yellow). Simple and easy to install and operate. No power adapter is required.
Sleeping bad fully unzips to become a blanket
Features:
Switch Between 4 different Video Sources on 1 Display
Connector Type: 4 Input, 1 Output
Eliminates Repeatedly Plugging and Unplugging Cables
Compact Design Takes Up Very Little Space
Black Metal Enclosure
Manual Switching
VIDEO:
Input Level Resistance: VS0.8-1.0Vp-p/75Ω
Output Level Resistance: VS0.8-1.4Vp-p/75Ω/li>
Support: 50Hz - 5.5MHz
Input Connectors: 4
Output Connectors: 1
AUDIO:
Input Level Resistance: 2V (RMS) / 47KΩ
Output Level Resistance: 2V (RMS) / 1KΩ
Support: 10Hz - 20KHz, 0dB
Input Connectors: 4 (L+R)
Output Connectors: 1 (L+R)
Metal Enclosure
Dimensions: (5.5" x 3.5" x 1.5")
Package Includes:
1 x 4-way RCA Audio Video Switcher.
User Manual
